| Features
- Xprotect Business Solution |
|
| Technical
Data |
 |
Video
surveillance software application for network video equipment |
|
Five product versions handling 4, 9, 16, 25 or 64 simultaneous
cameras |
|
Support
of network cameras or analog cameras connected via network
video servers |
|
Built-in real time video motion detection (VMD) |
|
Video
recording: Multi-channel, VMD controlled digital recording
to hard drive(s) of computer |
|
Recording speed: Up to 30 frames per second per camera (25
for PAL) |
|
Recording
quality: JPEG up to 1280 x 1024 pixels, other PAL resolutions
include 320 x 240, |
| |
352
x 288, 640 x 480 or 704 x 506 depending on camera/server |
|
Recording
technology: Secure high speed database holding JPEG images |
|
Recording
capacity: 600.000 images per camera per day |
|
Recording
archiving: Yes, daily |
|
Active
alerting through sound, email and SMS |
|
Remote
access to recordings and live cameras through built-in web-server |
|
Support
for dual computer screens (on Windows 98/2000 and XP) |
|
Multi-threaded
32-bit programming technology capable of utilizing multiple
processors |
|
Integration
with  Xprotect
Central Solution |
| Software
Functionality |
|
Simultaneous
video recording and playback |
|
Instant
search on time, date or activity/alarm |
|
Instant playback in real time with audio |
|
Export
of video recordings in JPEG or AVI format |
|
Simultaneous
audio recording and playback |
|
Export
of audio recordings in wave format |
|
Fully
adjustable video motion detection (VMD) supporting excluded
regions |
|
Automatic
camera control (start/stop) through scheduler at 5 minute
intervals available or |
| |
through external sensors |
|
P/T/Z
preset positions, up to 25 positions per camera |
|
VMD
sensitive P/T/Z patrolling among selected preset |
|
P/T/Z
go-to preset position on event |
|
iPIX
technology for P/T/Z within fisheye lens recorded images |
|
Multi-level
password protection and logging facilities |
|
Remote
AVI creation through web server |
|
3
image compression levels for remote live and playback viewing |
|
Remote
P/T/Z camera control through web server |
|
Print
documentation reports centrally and remotely |
|
Support
for output relays providing remote control of gates etc. |
| Administrator |
|
The
Xprotect
Business Administrator is a module that allows you to make
individual |
| |
settings of all network cameras, video servers, and users.
The flexible user interface allows you to define how many
cameras should be visible, scheduling, user rights, archiving,
E-mail and SMS alerting. |

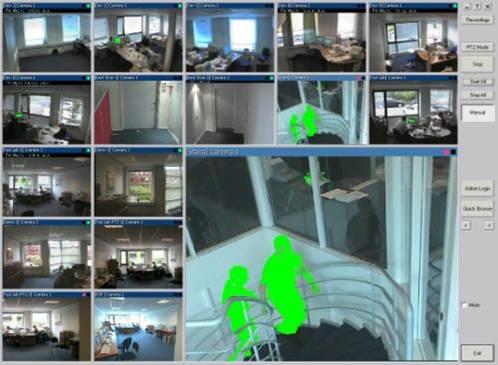

| Monitor |
|
In
the Xprotect
Business Monitor it is possible to watch all the cameras and
view |
| |
recordings
simultaneously from a central location. There is a Hot Spot
window with an extended view and on-screen PTZ and Quick browse
capability. Searches in recordings for events can be based
on time and date or on event or video motion detections. The
information can be generated as a report on print with time
and date stamp, as a single JPG image, or as an AVI film.
|
| The
Web Server |
|
The
Xprotect
Business Web Server provides access to the surveillance system
from |
| |
remote locations using a standard Internet Explorer. You can
either log on to the system via dial-up or Internet/intranet
and broadband lines. From the remote location you have full
access to alarm information, recorded images, live video,
and prints. Here you can search for the registrations on time
and date in the database and print the documentation in a
report, while watching live images from the selected cameras.
You can monitor up to 10 x 4 cameras simultaneously. |
| System
Requirements |
|
System
with up to 50 fps in total |
| |
OS:
Windows 98, NT, 2000, XP
CPU: Pentium III, 1 GHz
RAM: 256 Mbytes
Network: Ethernet 100 Mbit
Video card: AGP (min. 1024x768)
Video colors: True 24 bit
HDD: E-IDE (7200 rpm recommended) |
|
System
with up to 200 fps in total |
| |
OS:
Windows 98, NT, 2000, XP
CPU: Quad Pentium III, 1 GHz
RAM: 1 Gbyte
Network: Ethernet 100 Mbit
Video card: AGP (min. 1024x768)
Video colors: True 24 bit
HDD: Fast SCSI |
